The outer shell of a charging pile, also known as the charging station enclosure, serves as the protective and aesthetic covering for the internal components of electric vehicle charging equipment. It plays a crucial role in safeguarding the charging pile from external environmental factors such as rainwater, dust, and impacts, while also providing a visually appealing design.

Material Selection

The material choice for the outer shell of a charging pile is vital, directly impacting its strength, durability, and safety. Common materials include:

1. Cold-rolled Steel and Galvanized Steel: These materials offer high strength and corrosion resistance, making them suitable for charging piles that need to withstand external forces and harsh environments.
2. Aluminum Alloy: Aluminum alloy is a lightweight yet strong metallic material with excellent corrosion resistance. Using aluminum alloy for the charging pile shell significantly reduces the overall weight while ensuring long-term stability in outdoor applications.
3. ABS Plastic and PC Plastic: These plastic materials provide exceptional impact strength, heat resistance, and electrical insulation. They are cost-effective, enhance aesthetic quality, and offer good mechanical properties and durability for charging pile shells.

Design Features

The design of the charging pile shell must consider various aspects, including appearance, structure, electrical performance, and thermal dissipation. Key design features include:

1. Sleek and Attractive Appearance: The shell's design should be simple and elegant, utilizing a combination of straight lines and folds, and the interplay between geometric shapes to convey a sophisticated and minimalist aesthetic.
2. Strong Environmental Adaptability: Depending on the charging pile's environmental requirements, the shell's protection rating should reach IP32 for indoor use and IP54 for outdoor use. It should also exhibit good weather resistance, enduring extreme temperatures, humidity, and UV radiation.
3. High Mechanical Strength: The shell must withstand external impacts and pressure, requiring materials with sufficient mechanical strength and toughness.
4. Excellent Electrical Insulation: The shell must provide good electrical insulation to prevent current leakage and electric shock hazards.

Manufacturing Process

The manufacturing process of the charging pile shell involves material preparation, forming, surface treatment, and assembly. Specific steps include:

1. Material Preparation: Select appropriate materials based on design requirements and preprocess them, such as cutting and bending.

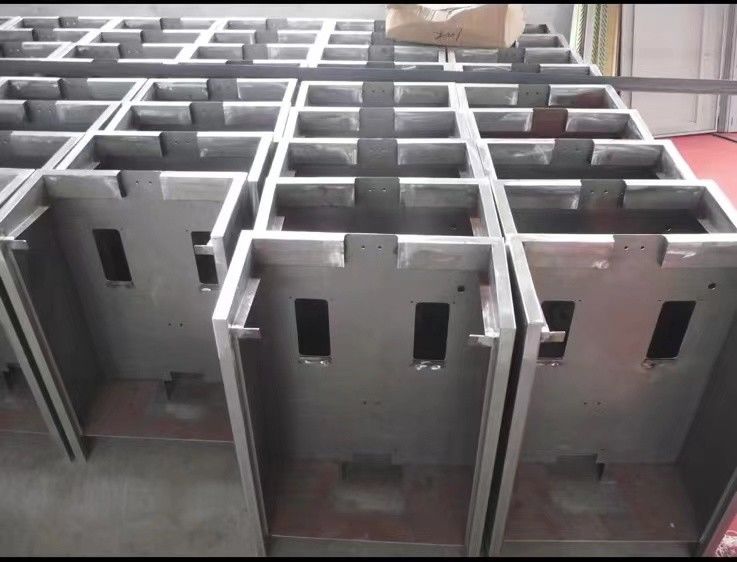

2. Forming: Shape the materials into the charging pile shell through processes like stamping and welding.
3. Surface Treatment: Apply surface treatments such as pretreatment and coating to enhance corrosion resistance and aesthetics.
4. Assembly: Connect and fix the shell with other components (e.g., charging guns, cables) and conduct electrical performance and safety tests to ensure the overall performance and safety of the charging pile.

Application and Development

Charging pile shells are widely used in electric vehicle charging stations, parking lots, and other locations. As electric vehicles become more popular and charging infrastructure improves, the demand for charging pile shells is increasing. Future developments will focus on using more environmentally friendly materials, offering personalized and intelligent designs, and achieving automation and precision in manufacturing processes.

In summary, the outer shell of a charging pile, as a vital component, deserves in-depth research and attention regarding material selection, design features, manufacturing processes, and application trends.
