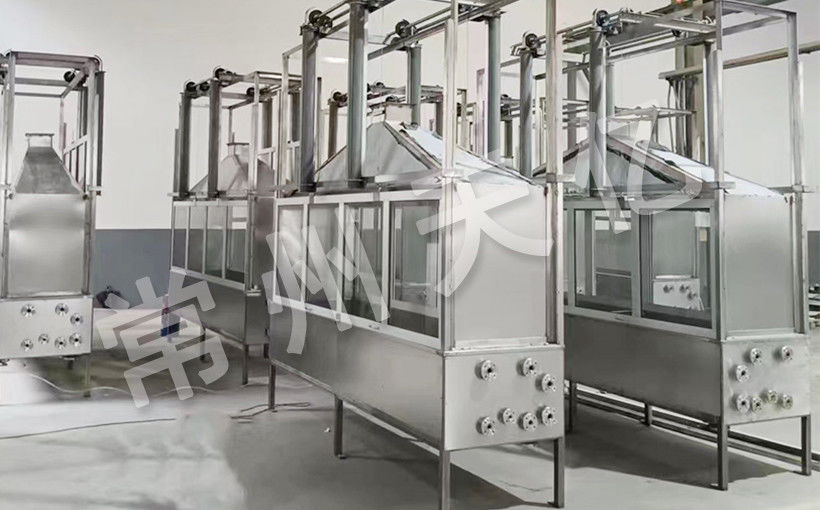

Sheet Metal Equipment Enclosure

A sheet metal equipment enclosure is a protective casing constructed from sheet metal materials, primarily designed to encapsulate, secure, and safeguard the internal components of various devices. It plays a crucial role in ensuring the durability, functionality, and aesthetic appeal of the enclosed equipment.

Material Selection

The primary materials used for sheet metal equipment enclosures include stainless steel, aluminum alloy, copper, carbon steel, and other metallic sheets. These materials offer excellent mechanical properties, corrosion resistance, and workability, making them ideal for meeting the diverse requirements of different equipment enclosures in terms of strength and aesthetics.

Design Aspects

1. Size and Shape: The size and shape of the sheet metal enclosure are tailored to the specific needs of the equipment. Factors such as the equipment's appearance, structural characteristics, and operating environment are considered to ensure a snug fit around the internal components, while providing sufficient space and accessibility for installation and interfacing.

2. Structural Design: The structural design of the enclosure is vital. It must address aspects such as structural integrity, thermal dissipation, and electromagnetic shielding to ensure stability and safety during use. For instance, thermal vents or fins may be incorporated in areas requiring heat dissipation to enhance the equipment's cooling efficiency.

3. Material Thickness: The thickness of the sheet metal is selected based on the loads and strength requirements the enclosure must endure. Excessively thin or thick materials can compromise the product's performance and lifespan. Therefore, a balance between mechanical properties and cost is essential in determining the optimal sheet metal thickness.

Manufacturing Processes

1. Cutting and Blanking: Using methods such as laser cutting or mechanical shearing, the metallic sheet is cut into the desired shape and size according to the design specifications.

2. Bending and Forming: The cut sheets are then bent and formed into the basic structure of the enclosure using bending machines, adhering to the design blueprint.

3. Welding and Assembly: For parts requiring connection, welding techniques are employed. Welding parameters such as temperature and speed are controlled to ensure welding quality.

4. Surface Treatment: Depending on requirements, the enclosure undergoes surface treatments like painting, plating, or oxidation to enhance corrosion resistance and aesthetic appeal.

Applications

Sheet metal equipment enclosures find widespread application in various devices requiring protection, such as electronic devices (computers, smartphones, tablets), machinery (lathes, automobiles, railway vehicles), and communication equipment (base stations, antennas). These enclosures shield the equipment from external interferences and damages.

Trends and Development

1. Material Diversification: With the emergence of new materials, the options for sheet metal enclosure materials are expanding. Advanced materials like carbon fiber and titanium alloys are increasingly being adopted, offering more possibilities for enclosure design and manufacturing.

2. Process Innovation: Advances in processing technology are driving innovations in sheet metal enclosure manufacturing. Using eco-friendly materials, reducing energy consumption, and minimizing waste are becoming industry trends.

3. Smart Manufacturing: The rapid development of smart manufacturing is leading to the gradual automation of sheet metal enclosure production. The introduction of intelligent equipment and automated production lines is enhancing productivity, lowering labor costs, and improving product quality, thus becoming a competitive advantage for the sheet metal processing industry.

In conclusion, sheet metal equipment enclosures play a vital role in protecting internal components, providing structural support, facilitating thermal dissipation, and ensuring electromagnetic shielding. When selecting and designing these enclosures, factors such as material, size, shape, processing techniques, and surface treatment must be considered to meet the diverse needs of various equipment.
